KEB COMBIVERT S6 – Intelligent Servo Drive
- Compact & Powerful
- Power range: 0.75 … 5.5 kW
- Available in two enclosure sizes
- Book-style format for space-saving cabinet design
- Direct mains connection (230 V / 400–480 V) or DC-input (260 … 750 V)
- Built-in low leakage current mains filter
- Motor Operations
- Universal control for asynchronous, synchronous, IPM, and reluctance motors
- Works with encoder feedback or encoderless control (ASCL/SCL)
- Integrated motor temperature monitoring (PTC or KTY sensors)
- Two-channel multi-encoder interface for flexibility
- Built-in GTR7 brake transistor, brake control, and brake supply
- Communication Options
- Supports real-time Ethernet protocols: EtherCAT, PROFINET, POWERLINK
- RS232/485 for diagnostics and display
- I/O Features
- 8 digital inputs, 2 analog inputs
- 2 digital outputs, 1 relay output, 1 analog output (0–10 V)
- Dedicated brake control output
- Integrated Functional Safety
- Safety function STO (Safe Torque Off)
- Certified to ISO 13849 Performance Level e and IEC 62061 SIL 3
A: Application – Modular and Flexible
- Compact & Powerful
- Power range: 0.75 … 5.5 kW
- Available in two enclosure sizes
- Book-style format for space-saving cabinet design
- Direct mains connection (230 V / 400–480 V) or DC-input (260 … 750 V)
- Built-in low leakage current mains filter
- Motor Operations
- Universal control for asynchronous, synchronous, IPM, and reluctance motors
- Works with encoder feedback or encoderless control (ASCL/SCL)
- Integrated motor temperature monitoring (PTC or KTY sensors)
- Two-channel multi-encoder interface for flexibility
- Built-in GTR7 brake transistor, brake control, and brake supply
- Communication Options
- Supports real-time Ethernet protocols: EtherCAT, PROFINET, POWERLINK
- RS232/485 for diagnostics and display
- I/O Features
- 8 digital inputs, 2 analog inputs
- 2 digital outputs, 1 relay output, 1 analog output (0–10 V)
- Dedicated brake control output
- Integrated Functional Safety
- Safety function STO (Safe Torque Off)
- Certified to ISO 13849 Performance Level e and IEC 62061 SIL 3

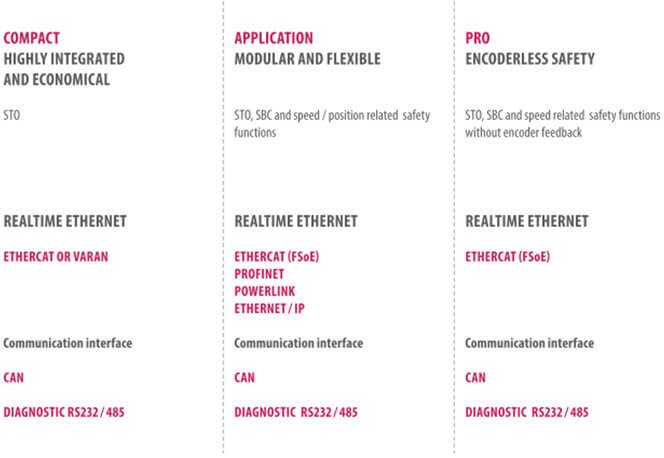

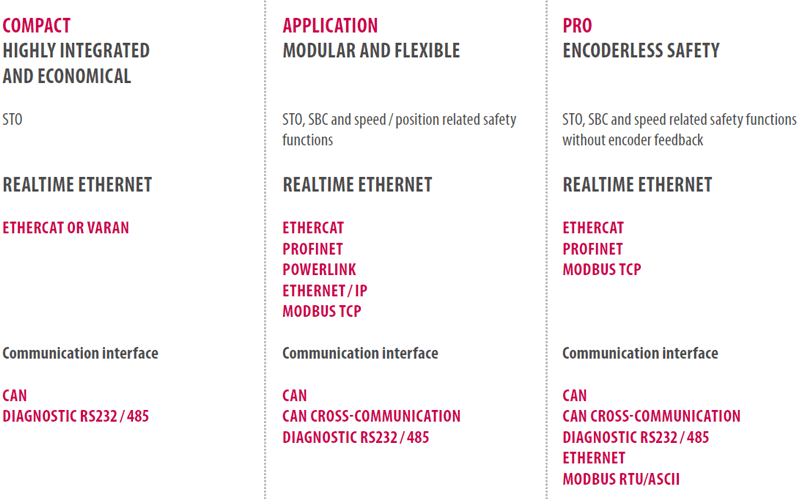

K: Compact – Highly Integrated and Economical
- STO
- Realtime Ethernet: EtherCAT or VARAN:
- CAN
- Diagnostic RS232 / 485
P: Pro – Encoderless Safety
- STO, SBC and speed-related safety functions without encoder feedback
- Realtime Ethernet: EtherCAT (FSoE)
- Communication Interface:
- CAN
- Diagnostic RS232 / 485
